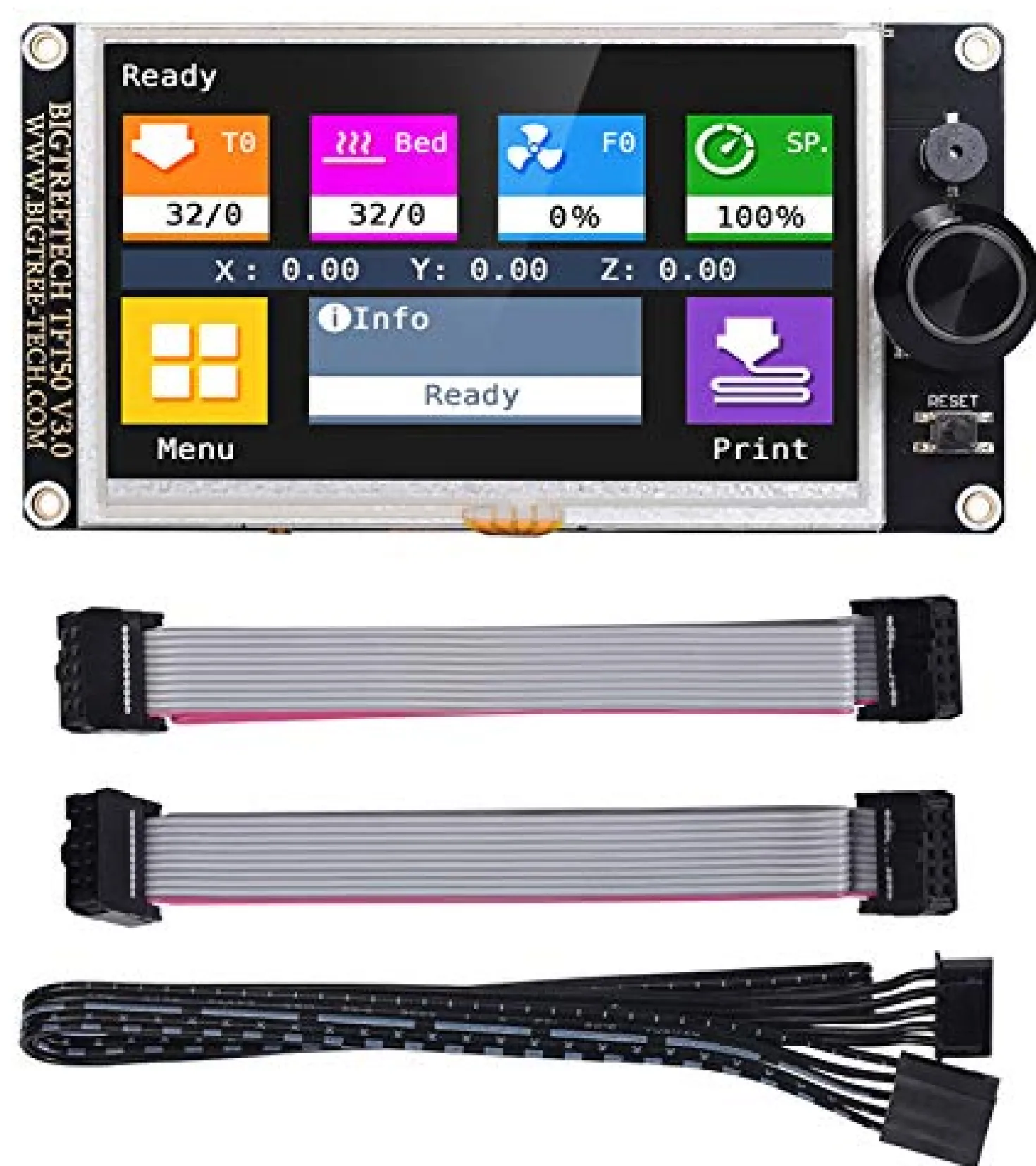

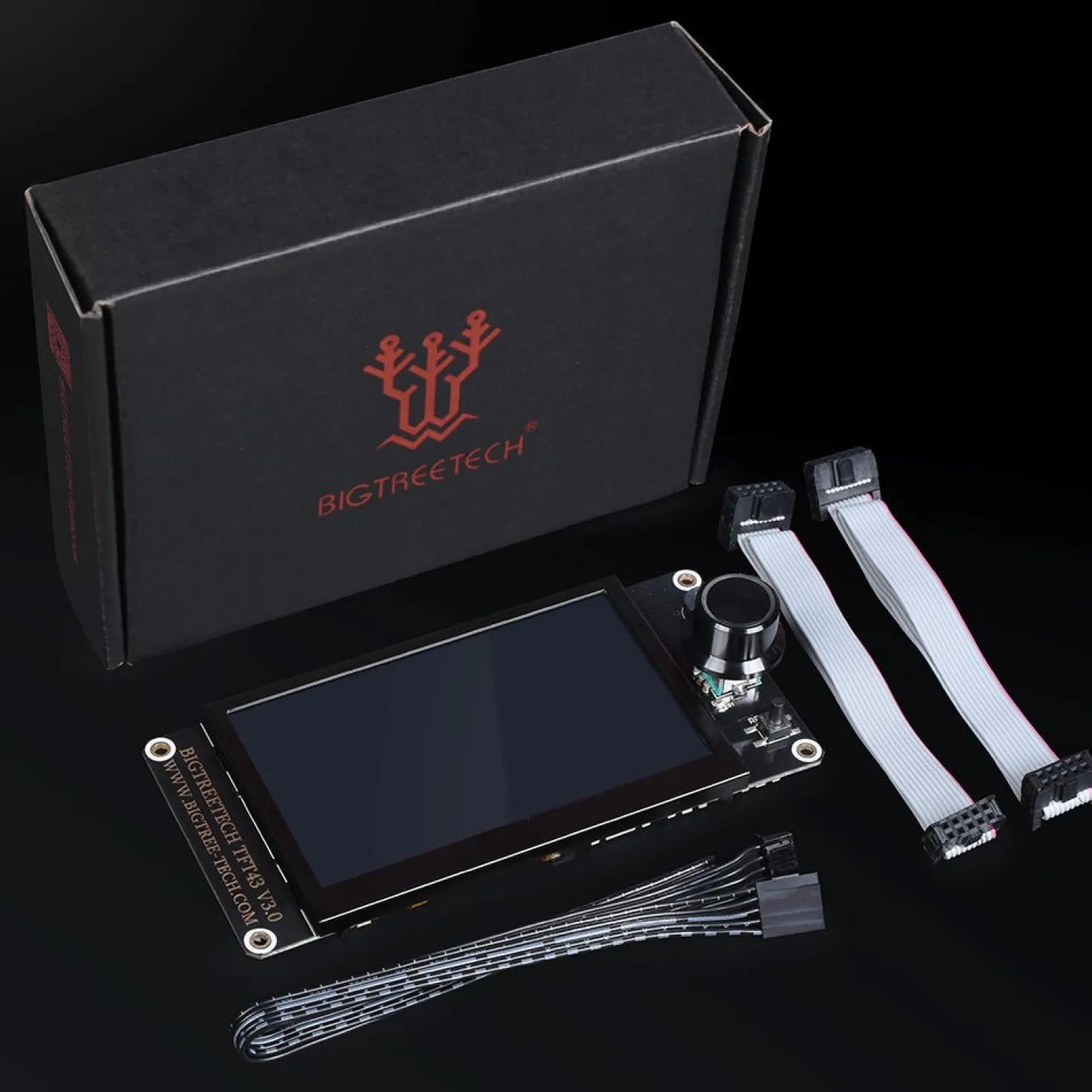

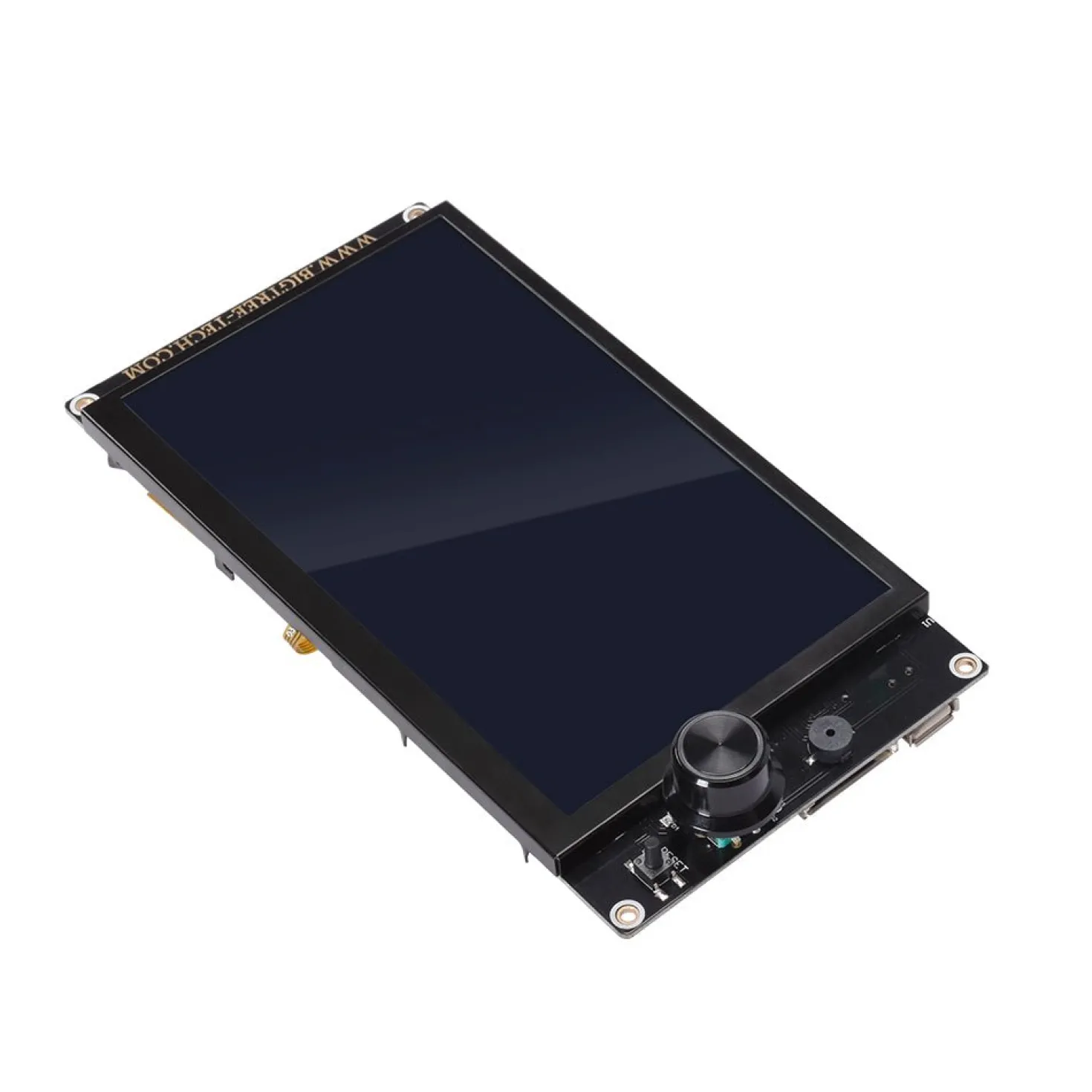

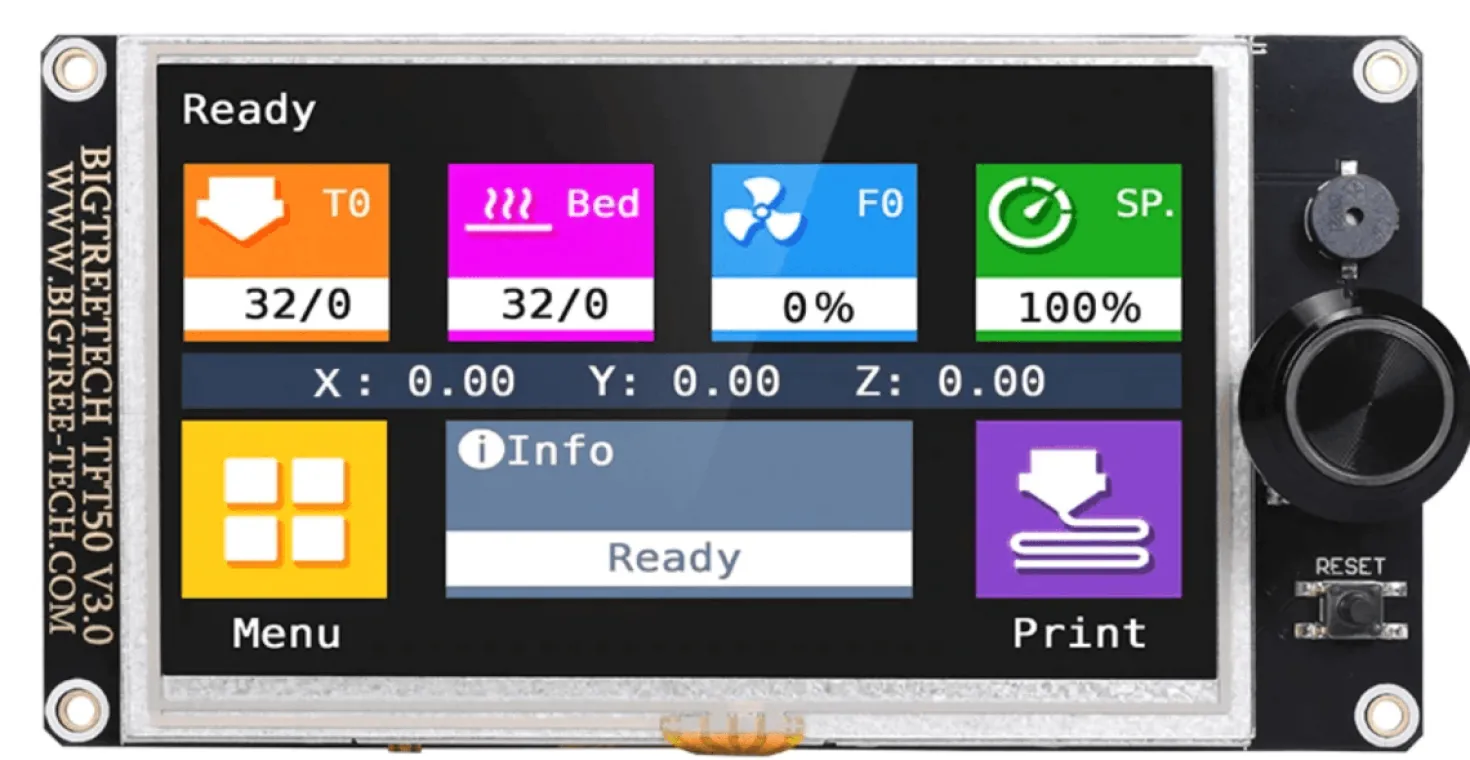

BIGTREETECH TFT50 V3.0 Screen

Name: BIGTREETECH TFT50 V3.0 Screen
Brand: BIGTREETECH
SKU: SKUTIRCUL
Price: 322.79 DKK
Availability: InStock

kr.322.79

BigTreeTech TFT50 V3.0

Et universalt kvalitets display til de fleste printere.

Parameters	BTT TFT43 V3.0	BTT TFT50 V3.0	BTT TFT70 V3.0
Appearance Size	143.65*67.25mm	*14977.5mm**	196*100mm
Installation Size	135.65*59.25mm	*14169.5mm**	188*92mm
MCU	STM32F205/207VCT6+SSD1963	STM32F205/207VCT6+SSD1963	STM32F407VGT6+SSD1963
Screen Display Area	95.04*53.856mm	*110.8862.832mm**	153.84*85.776mm
Display Resolution	480（RGB）*272	*480（RGB）272**	800（RGB）*480（V）
Backlight	7 white LED lights	12 white LED lights	21 white LED lights
Power Input	DC 5V
Logic Voltage of SD Card	3.3V and 5V (like: supporting motherboard with control chip MEGA2560, with stronger compatibility)
