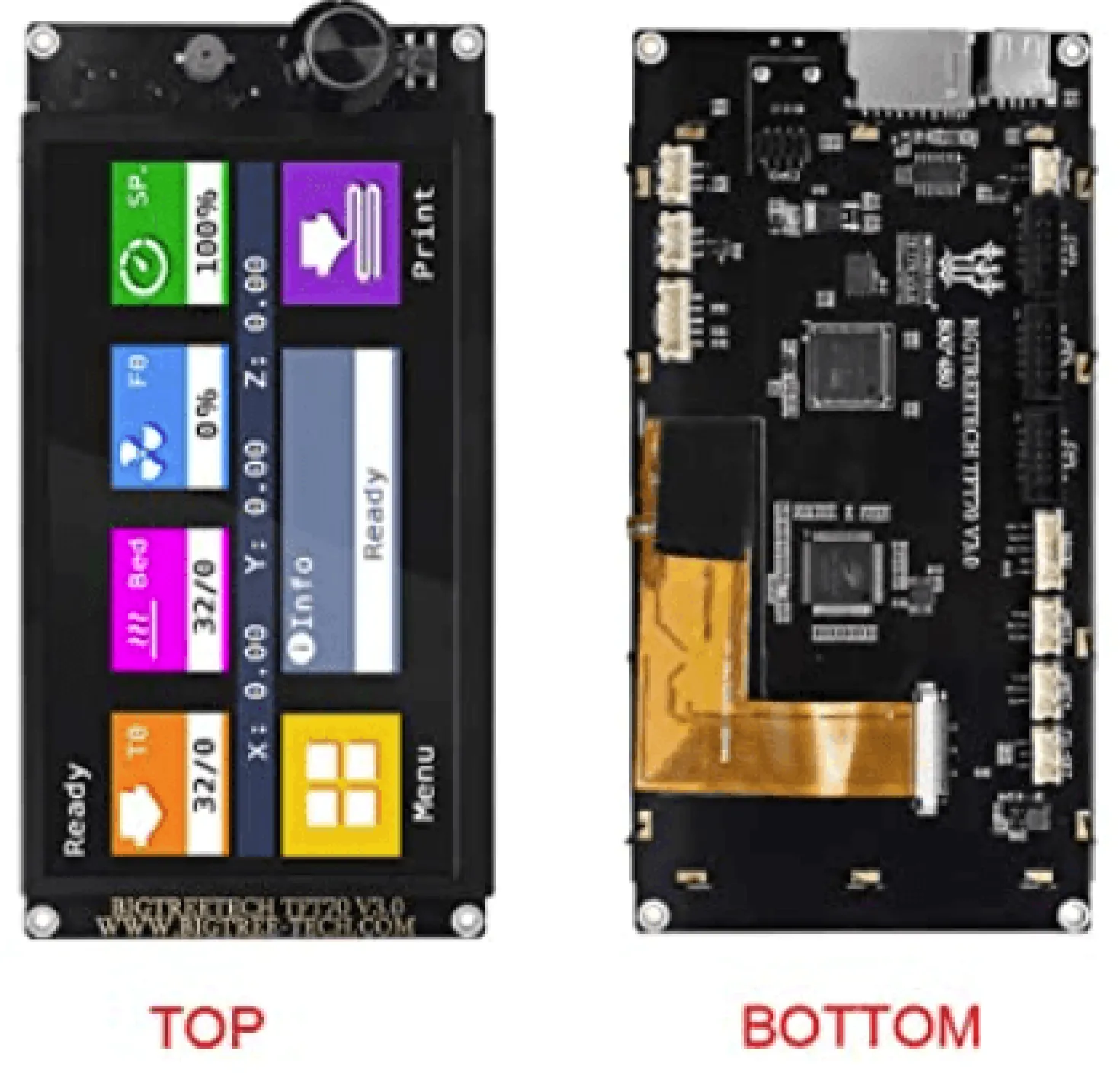

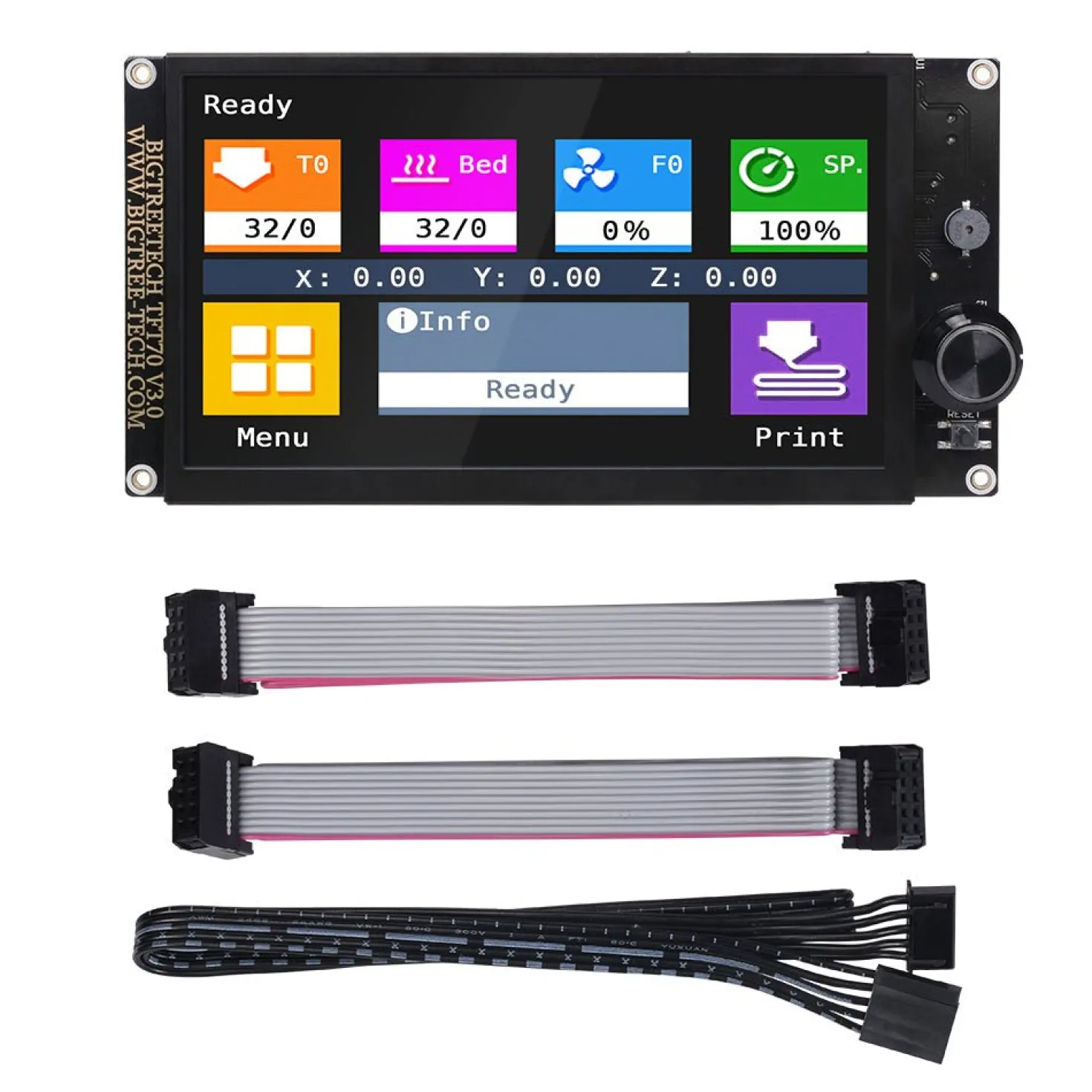

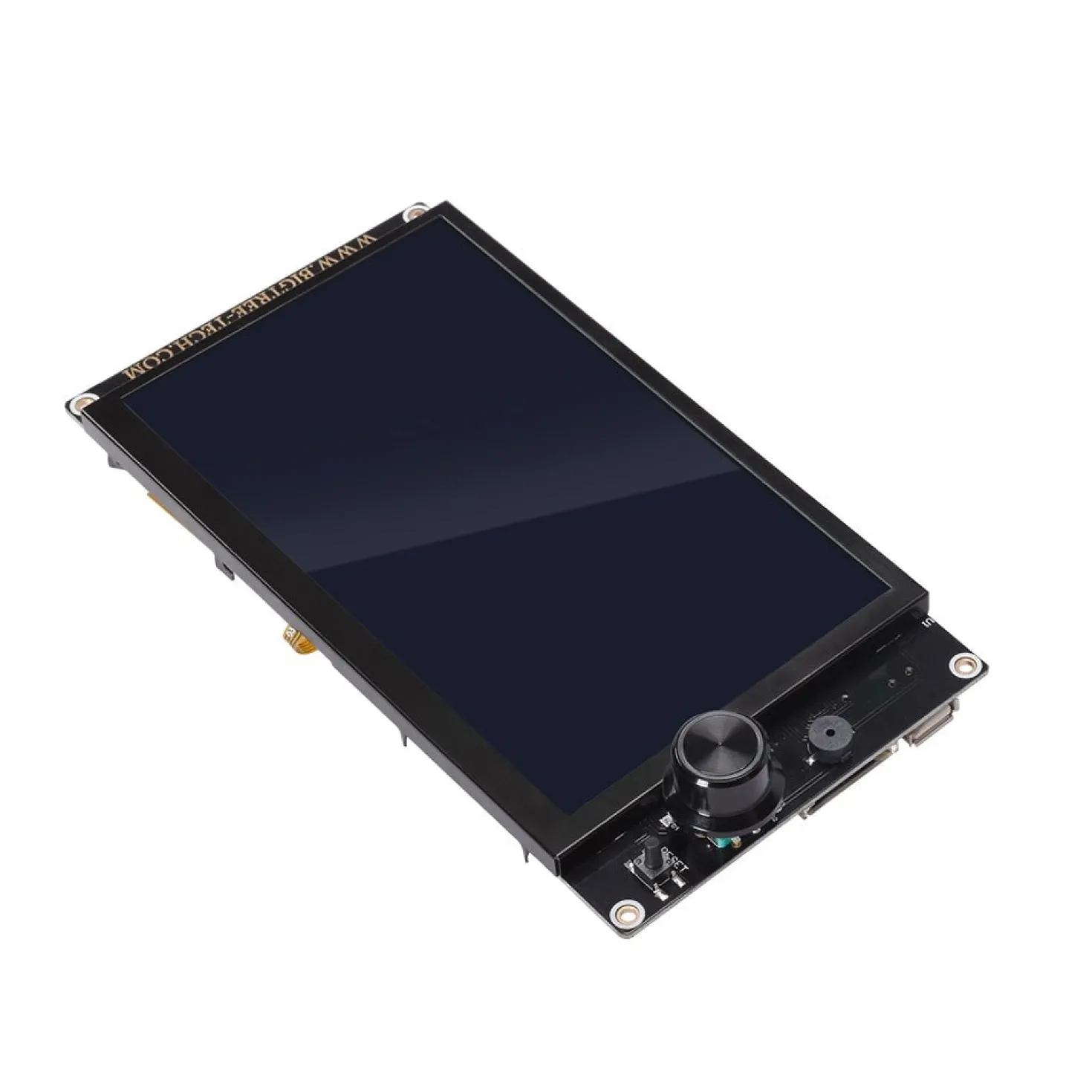

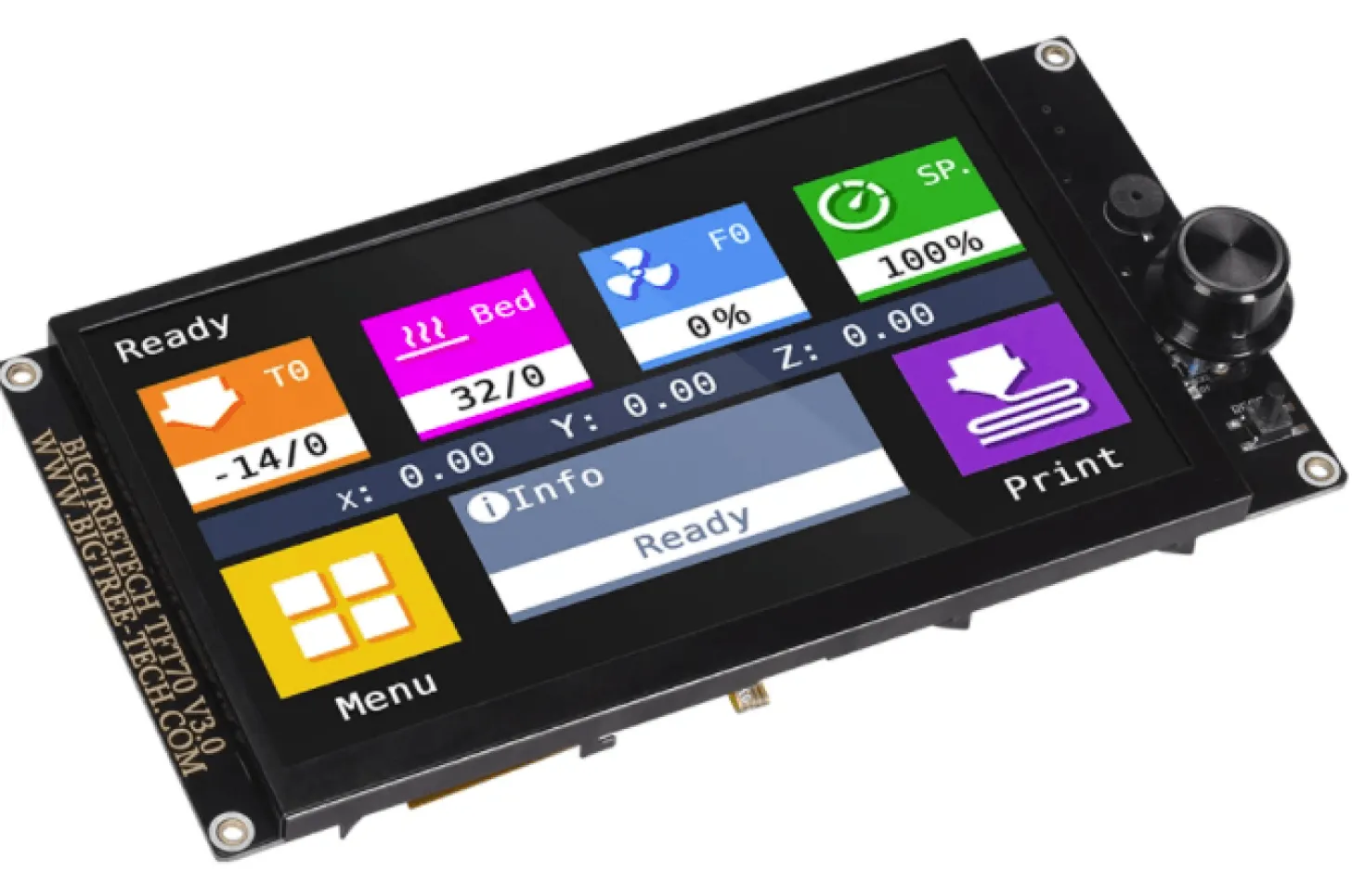

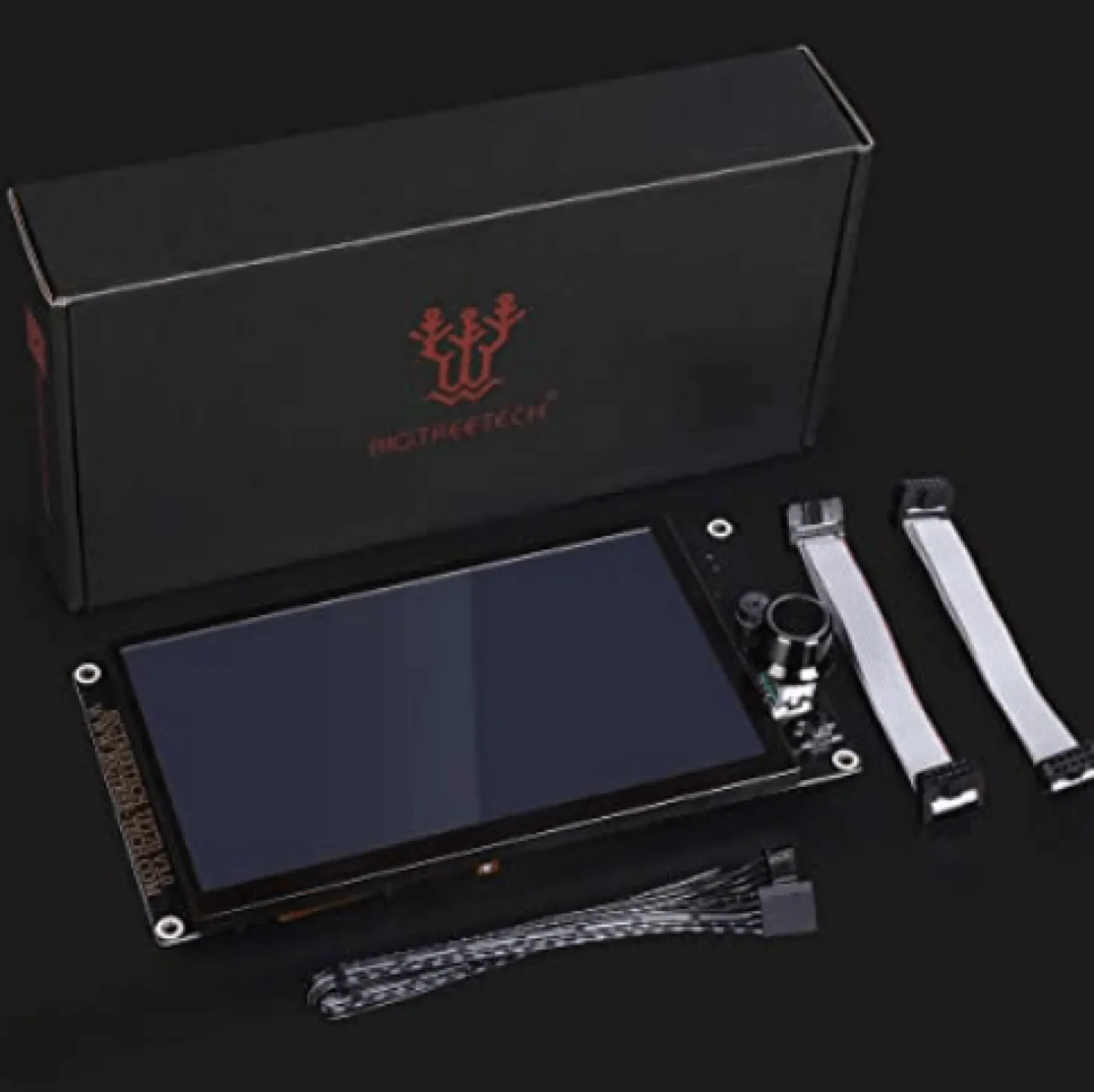

BIGTREETECH TFT70 V3.0 Screen
kr.503.95
BIGTREETECH TFT70 V3.0
Et universalt kvalitets display til de fleste printere.
| Parameters |
BTT TFT43 V3.0 |
BTT TFT50 V3.0 |
BTT TFT70 V3.0 |
| Appearance Size |
143.65*67.25mm |
149*77.5mm |
196*100mm |
| Installation Size |
135.65*59.25mm |
141*69.5mm |
188*92mm |
| MCU |
STM32F205/207VCT6+SSD1963 |
STM32F205/207VCT6+SSD1963 |
STM32F407VGT6+SSD1963 |
| Screen Display Area |
95.04*53.856mm |
110.88*62.832mm |
153.84*85.776mm |
| Display Resolution |
480（RGB）*272 |
480（RGB）*272 |
800（RGB）*480（V） |
| Backlight |
7 white LED lights |
12 white LED lights |
21 white LED lights |
| Power Input |
DC 5V |
||
| Logic Voltage of SD Card |
3.3V and 5V (like: supporting motherboard with control chip MEGA2560, with stronger compatibility) |
Tekniske specifikationer
Brand
BIGTREETECH
Bruttovægt
0.5 kg
EAN
6973828110104
