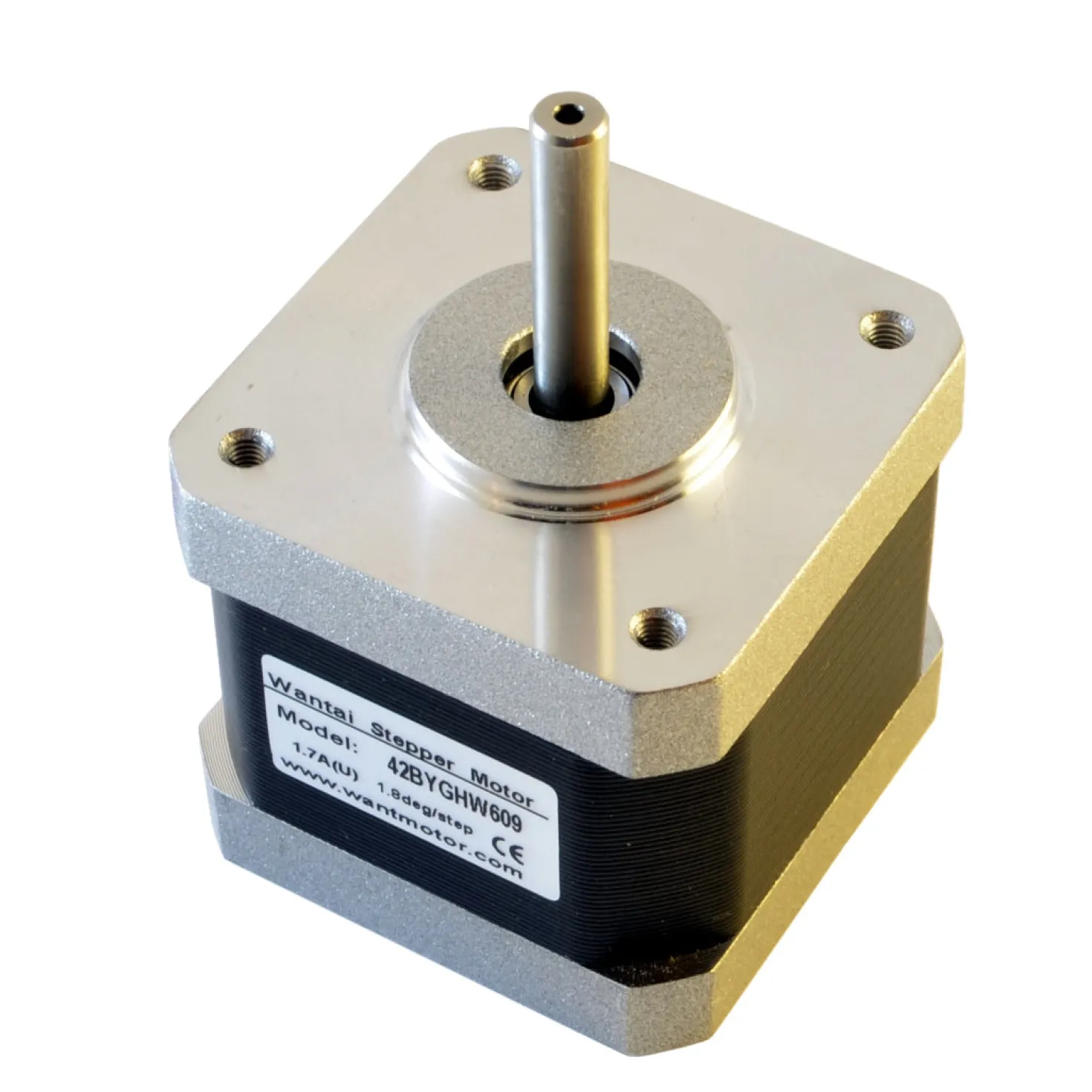

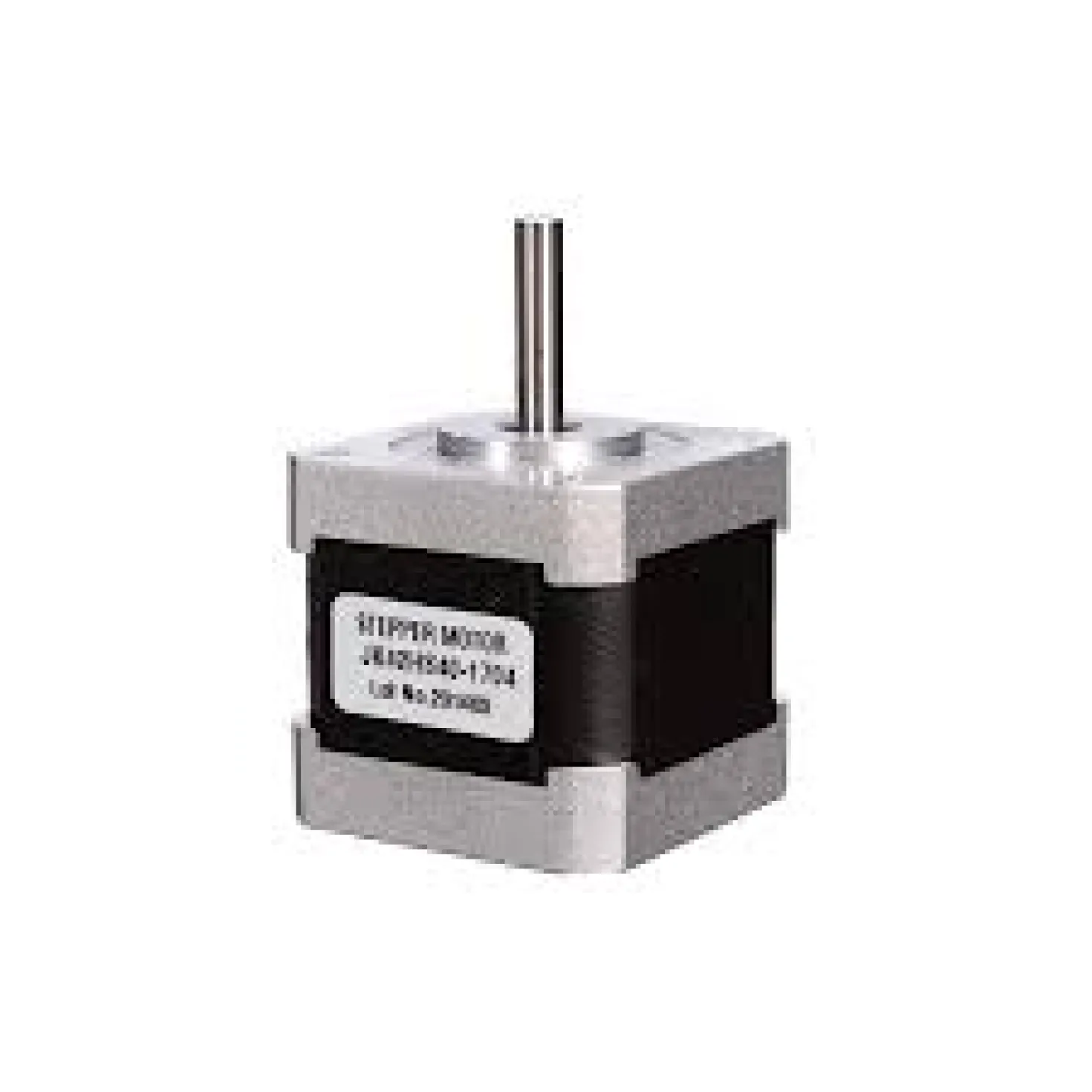

Nema17 1.7A 40mm Stepper Motor

kr.103.46

SKU: SKUZSHI90 Categories: Elektronik, Reservedele, Stepper Motor Tag: Spider Brand: Spider

Description
Reviews (0)

Nema17 1.7A

Weight: 2600g.

Cm: 40mm length

4-Lead

2 phase Stepper Motor.

Model: 42BYGHW609 1.7A

Without 4pin cable

Specifications:
Step Angle: 1.8±5% degree/phase
Voltage: 3.6V
Current: 1.7A/phase
Resistance: 2 Ω/phase
Inductance: 3.0mH( 1kHz 1V rms)
Comes with 4-Lead Wire
Rotor torque: 54g/cm2
Detent torque: 140g.cm
insulation resistance:100MΩ Min (50V DC)
Insulation class: B
Net Weight: 289g
Product content:
1* NEMA Stepper Motor
