kr.445.72

SKU: SKUKBQXC0 Categories: , , , Tag: Brand:

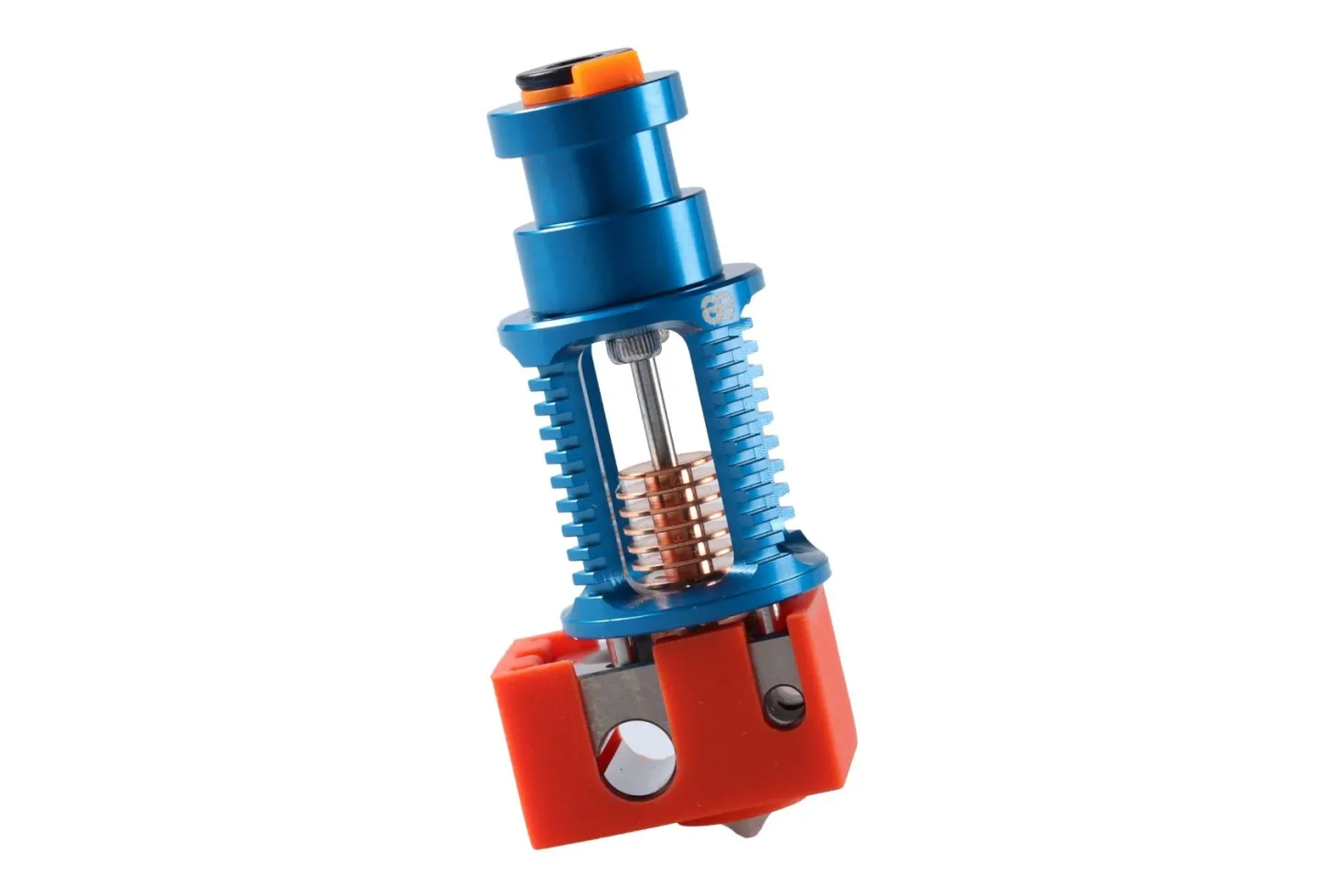

Phaetus Dragon Standard Flow Hot-End

Incl. 1x Copper Plated Reprap M6 0.4 mm nozzle.

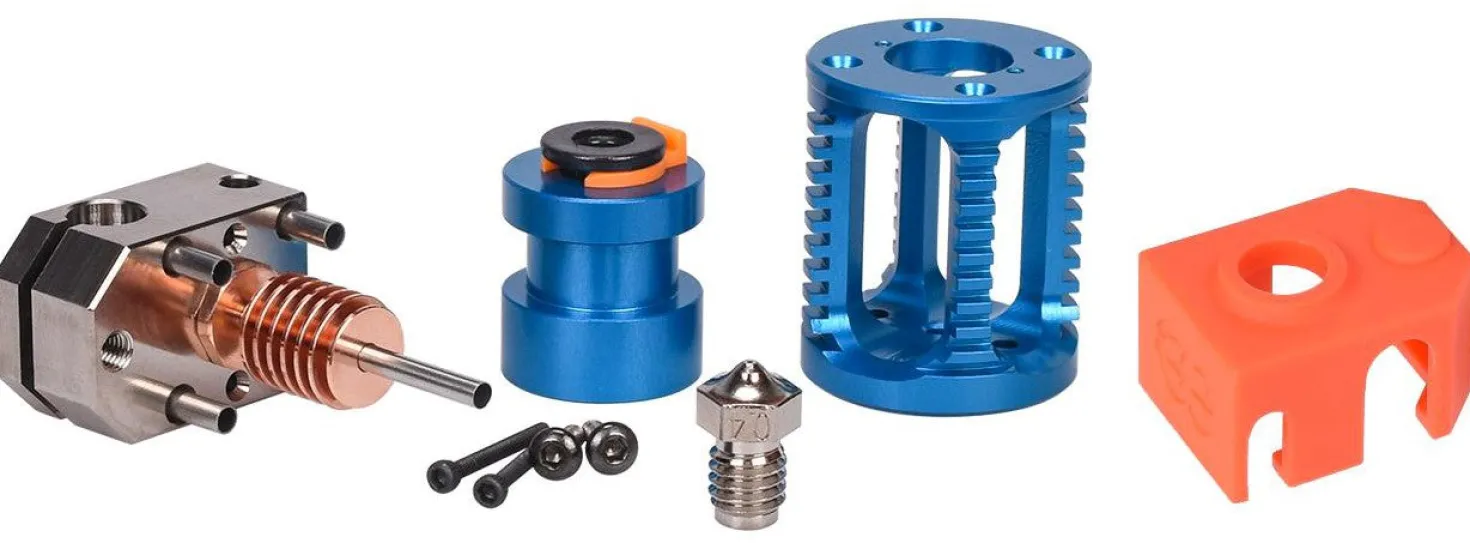

  • All-metal kit, with overall high temperature resistance up to 500 ℃.
  • Heat break with an ultra-thin wall thickness as thin as 0.1 mm, realizing an excellent thermal insulation.
  • Increased rigid support structure guarantee the heat break remaining intact under the impact of external force.

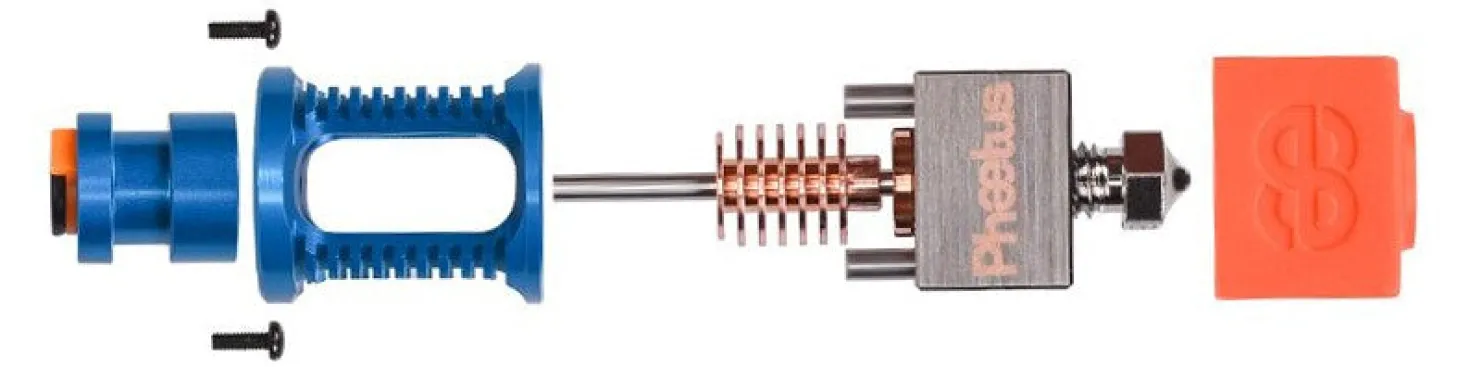

  • Integral frame rigid structure makes nozzle replacement more convenient without grasping the heat block.
  • The inner hole roughness of nozzle and heat break 0.4, which allow a more smooth movement of filament, resulting a higher resolution prints.

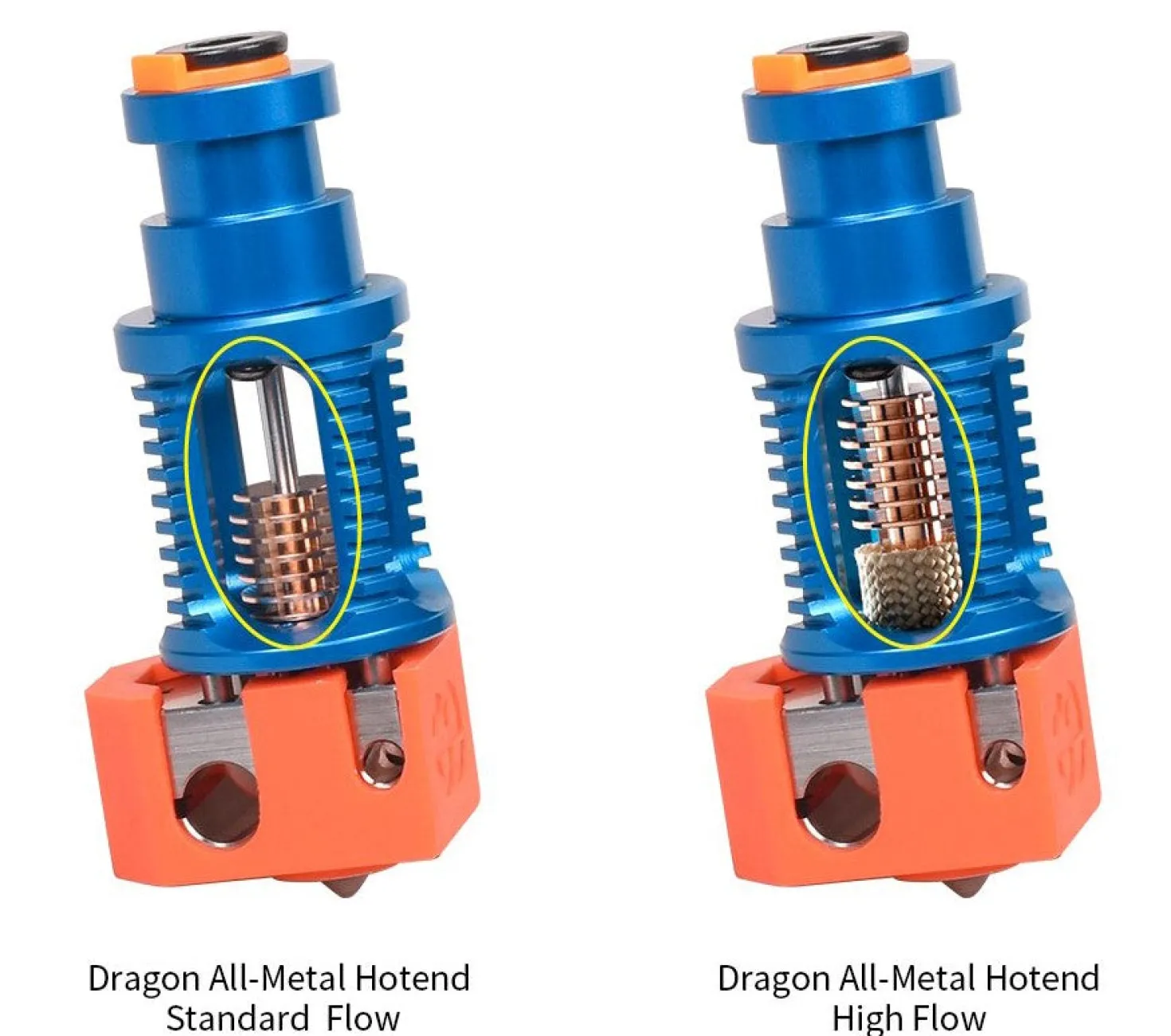

  • ST and HF version are with the same overall dimension, which realizes a zero barrier for interchangeability.
  • The hot-end is mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation.

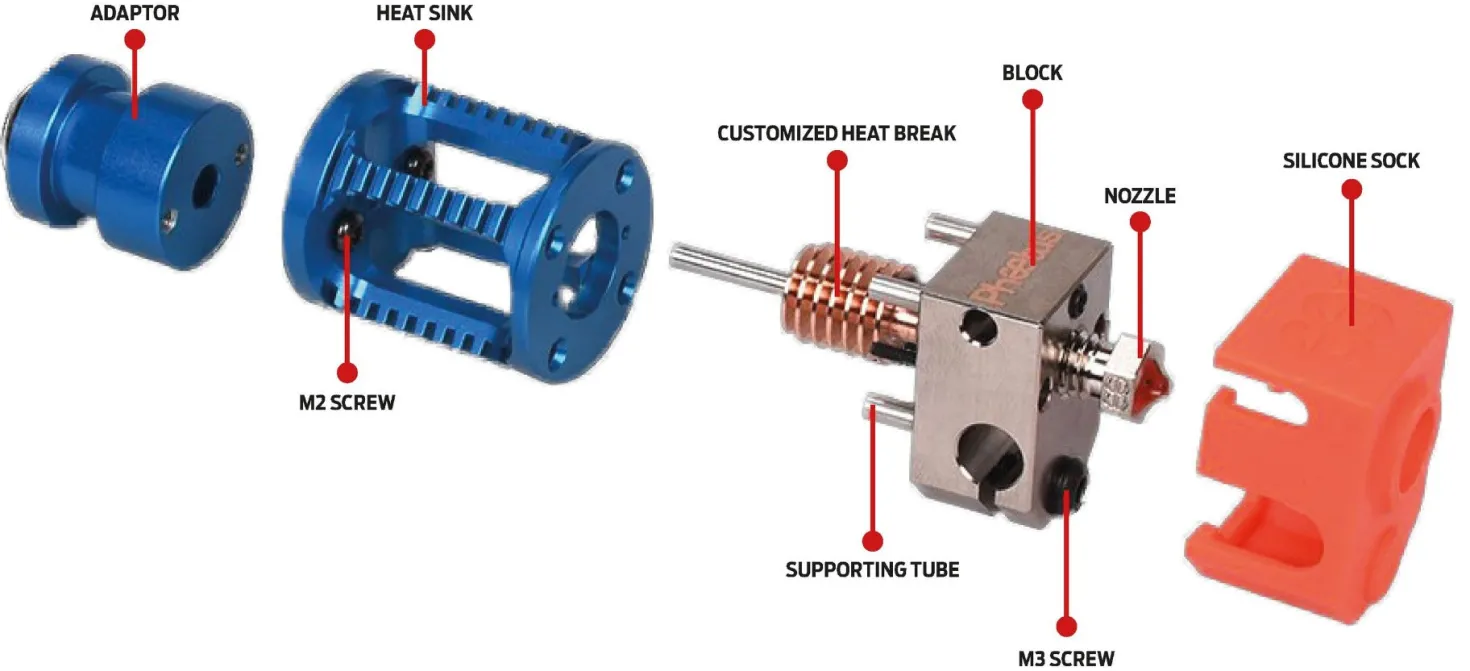

  • Flexible combined structure design makes a strong compatibility.

    • Compatibility

    With V6 adapter:

  • All V6 Hot-End compatible interfaces
  • Prusa I3 MK3 / MK3S
  • Titan Extruder
  • BMG Extruder

    • Without V6 adapter:

  • Mosquito Hot-End compatible interfaces

    • Mounting brackets for different printers:

    Prusa I3 MK3/MK3S mount bracket STL: https://www.prusa3d.com/prusa-i3-printable-parts/
    Creality CR-10, MicroSwiss, E3Dv6 / Volcano, Tevo Tornado / Tarantula: https://www.thingiverse.com/thing:2759439

    Flowrate of the standard one is around 15~20mm³/s

    Tekniske specifikationer

    Brand

    Phaetus

    Bruttovægt

    0.1 kg

    EAN

    6973090160005
